α [o]Right ascension |
δ [o]Declination |
λ [o]Galactic longitude |
β [o]Galactic latitude |
TmagTESS magnitude |
Teff [K]Effective temperature |
log(g) [dex]Surface gravity |
abun [dex]Metal abundance |
PM(α) [mas]Proper motion in R.A. |
PM(δ) [mas]Proper motion in Dec. |
SectorsTESS sectors the target was observed in |
ProvenancesAvailable mission and HLSP provenances |
Syndicated dataAll provenances in a single fits file |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 327.546397 | 71.443957 | 109.478208 | 13.480068 | 9.2803 | 7020.0 | 4.10342 | None | -12.8225 | -18.6381 | 17, 18, 25, 52, 57, 58, 59, 77, 78, 79, 84, 85, 86 | QLP, SPOC, TESS-SPOC | FITS |
SignalTIC signal ID |
In catalog?Is this signal in the EB catalog? |
t0 [days]Time of superior conjunction |
σt0 [days]Uncertainty of t0 |

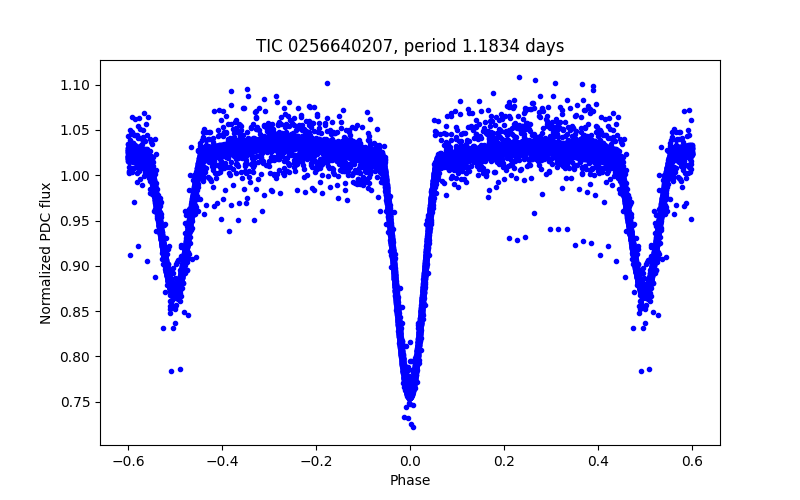

P [days]Orbital period in days |
σP [days]Orbital period in days |
MorphologyEB morphology coefficient |
Last modifiedLast modification date |
|---|---|---|---|---|---|---|---|
| 1 | True | 1765.7081973255367 | 0.00010358108238500001 | 1.1833652708396951 | 0.0000013252277177855378 | 0.542 | Feb. 26, 2025, 6:05 a.m. |
wp,pfPolyfit width of the primary eclipse |
ws,pfPolyfit width of the secondary eclipse |
dp,pfPolyfit depth of the primary eclipse |
ds,pfPolyfit depth of the secondary eclipse |
φp,pfPolyfit phase of the primary eclipse |
φs,pfPolyfit phase of the secondary eclipse |
wp,2g2-gaussian width of the primary eclipse |
ws,2g2-gaussian width of the secondary eclipse |
dp,2g2-gaussian depth of the primary eclipse |
ds,2g2-gaussian depth of the secondary eclipse |
φp,2g2-gaussian phase of the primary eclipse |
φs,2g2-gaussian phase of the secondary eclipse |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.097 | 0.095 | 0.239 | 0.138 | 1.000 | 0.500 | 0.146 | 0.142 | 0.273 | 0.164 | 0.000 | 0.500 |
