α [o]Right ascension |
δ [o]Declination |
λ [o]Galactic longitude |
β [o]Galactic latitude |
TmagTESS magnitude |
Teff [K]Effective temperature |
log(g) [dex]Surface gravity |
abun [dex]Metal abundance |
PM(α) [mas]Proper motion in R.A. |
PM(δ) [mas]Proper motion in Dec. |
SectorsTESS sectors the target was observed in |
ProvenancesAvailable mission and HLSP provenances |
Syndicated dataAll provenances in a single fits file |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 299.436206 | 60.662040 | 93.712691 | 15.848485 | 8.45062 | 6673.0 | 4.04905 | None | 29.9115 | 47.9127 | 14, 15, 16, 17, 21, 24, 41, 47, 51, 54, 55, 57, 58, 60, 74, 75, 76, 77, 78, 81, 82, 83, 84, 85 | QLP, SPOC, TESS-SPOC, TASOC | FITS |
SignalTIC signal ID |
In catalog?Is this signal in the EB catalog? |
t0 [days]Time of superior conjunction |
σt0 [days]Uncertainty of t0 |
P [days]Orbital period in days |
σP [days]Orbital period in days |
MorphologyEB morphology coefficient |
Last modifiedLast modification date |
|---|---|---|---|---|---|---|---|
| 1 | True | 1684.5997384188647 | 0.0011641889111615 | 8.056111098269318 | 0.00005278531394736774 | 0.207 | Feb. 26, 2025, 6:05 a.m. |
wp,pfPolyfit width of the primary eclipse |
ws,pfPolyfit width of the secondary eclipse |
dp,pfPolyfit depth of the primary eclipse |
ds,pfPolyfit depth of the secondary eclipse |

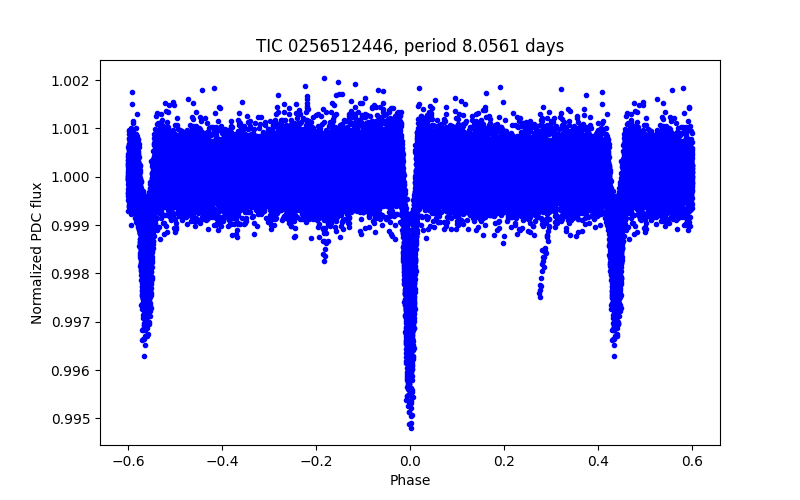

φp,pfPolyfit phase of the primary eclipse |
φs,pfPolyfit phase of the secondary eclipse |
wp,2g2-gaussian width of the primary eclipse |
ws,2g2-gaussian width of the secondary eclipse |
dp,2g2-gaussian depth of the primary eclipse |
ds,2g2-gaussian depth of the secondary eclipse |
φp,2g2-gaussian phase of the primary eclipse |
φs,2g2-gaussian phase of the secondary eclipse |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.029 | 0.003 | 1.000 | 0.045 | 0.053 | 0.004 | 0.003 | 0.000 | 0.440 |
