α [o]Right ascension |
δ [o]Declination |
λ [o]Galactic longitude |
β [o]Galactic latitude |
TmagTESS magnitude |
Teff [K]Effective temperature |
log(g) [dex]Surface gravity |
abun [dex]Metal abundance |
PM(α) [mas]Proper motion in R.A. |
PM(δ) [mas]Proper motion in Dec. |
SectorsTESS sectors the target was observed in |

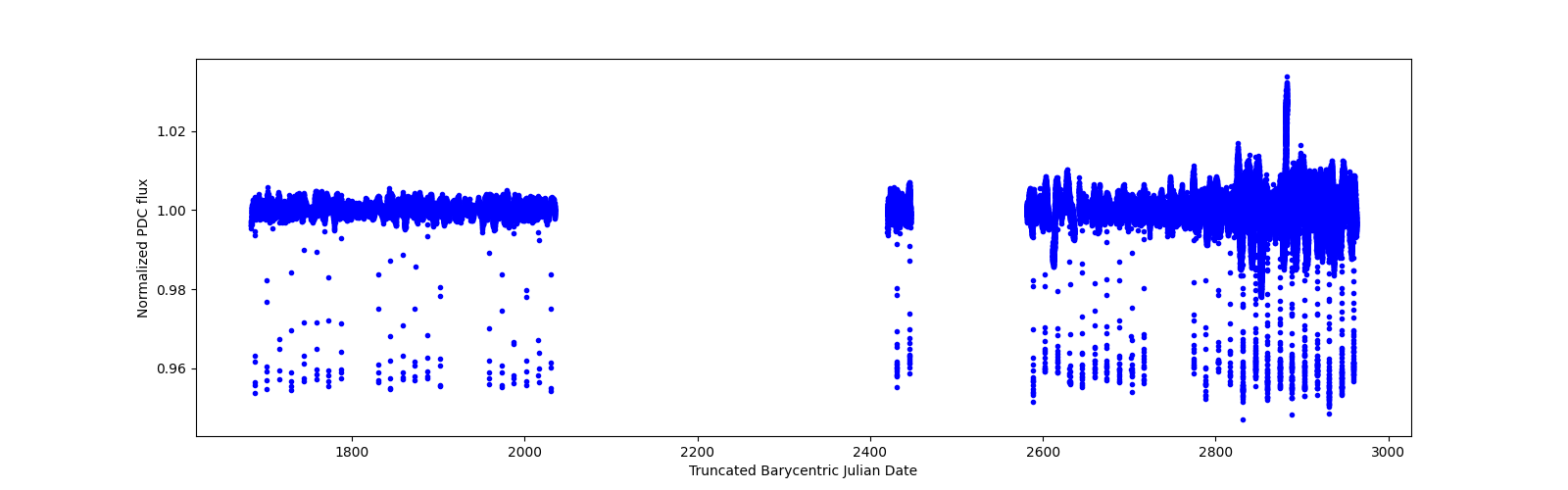

DataLight curve data |
ProvenancesAvailable mission and HLSP provenances |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 293.032708 | 74.891133 | 106.682137 | 23.531192 | 11.463 | 5051.0 | 4.52777 | None | -12.9782 | -13.9829 | 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 40, 41, 47, 48, 49, 50, 51, 52, 53, 54, 55 | LC |
SignalTIC signal ID |
In catalog?Is this signal in the EB catalog? |
t0 [days]Time of superior conjunction |
σt0 [days]Uncertainty of t0 |

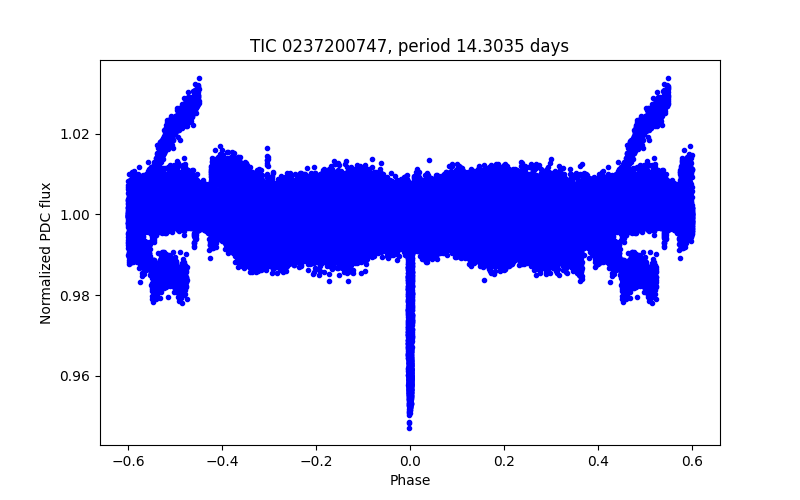

P [days]Orbital period in days |
σP [days]Orbital period in days |
MorphologyEB morphology coefficient |
Last modifiedLast modification date |
|---|---|---|---|---|---|---|---|
| 1 | True | 1687.0519399890065 | 0.0003389620819689 | 14.303495520801235 | 0.0000417443174995924 | 0.061 | Sept. 16, 2021, 5:37 p.m. |
wp,pfPolyfit width of the primary eclipse |
ws,pfPolyfit width of the secondary eclipse |
dp,pfPolyfit depth of the primary eclipse |
ds,pfPolyfit depth of the secondary eclipse |
φp,pfPolyfit phase of the primary eclipse |
φs,pfPolyfit phase of the secondary eclipse |
wp,2g2-gaussian width of the primary eclipse |
ws,2g2-gaussian width of the secondary eclipse |
dp,2g2-gaussian depth of the primary eclipse |
ds,2g2-gaussian depth of the secondary eclipse |
φp,2g2-gaussian phase of the primary eclipse |
φs,2g2-gaussian phase of the secondary eclipse |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.008 | 0.016 | 1.007 | 0.014 | 0.051 | 0.007 |
