α [o]Right ascension |
δ [o]Declination |
λ [o]Galactic longitude |
β [o]Galactic latitude |
TmagTESS magnitude |
Teff [K]Effective temperature |
log(g) [dex]Surface gravity |
abun [dex]Metal abundance |
PM(α) [mas]Proper motion in R.A. |
PM(δ) [mas]Proper motion in Dec. |
SectorsTESS sectors the target was observed in |
ProvenancesAvailable mission and HLSP provenances |
Syndicated dataAll provenances in a single fits file |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 295.534548 | 60.482994 | 92.668088 | 17.492995 | 12.9453 | 6489.0 | 4.12789 | None | -0.237776 | 0.775613 | 14, 15, 16, 17, 18, 20, 21, 23, 24, 40, 41, 47, 48, 50, 51, 54, 55, 56, 57, 58, 59, 60, 73, 74, 75, 76, 77, 78, 81, 82, 83, 84, 85, 86 | QLP, SPOC, TESS-SPOC, TASOC | FITS |
SignalTIC signal ID |
In catalog?Is this signal in the EB catalog? |
t0 [days]Time of superior conjunction |
σt0 [days]Uncertainty of t0 |

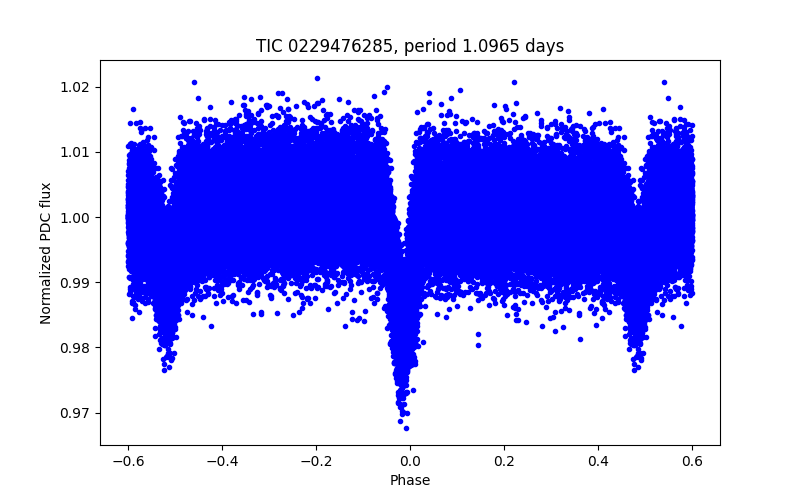

P [days]Orbital period in days |
σP [days]Orbital period in days |
MorphologyEB morphology coefficient |
Last modifiedLast modification date |
|---|---|---|---|---|---|---|---|
| 1 | True | 1883.0037606510807 | 0.0004792598417679 | 1.096462325622378 | 0.000006060470217006397 | 0.433 | Feb. 26, 2025, 6:05 a.m. |
wp,pfPolyfit width of the primary eclipse |
ws,pfPolyfit width of the secondary eclipse |
dp,pfPolyfit depth of the primary eclipse |
ds,pfPolyfit depth of the secondary eclipse |
φp,pfPolyfit phase of the primary eclipse |
φs,pfPolyfit phase of the secondary eclipse |
wp,2g2-gaussian width of the primary eclipse |
ws,2g2-gaussian width of the secondary eclipse |
dp,2g2-gaussian depth of the primary eclipse |
ds,2g2-gaussian depth of the secondary eclipse |
φp,2g2-gaussian phase of the primary eclipse |
φs,2g2-gaussian phase of the secondary eclipse |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.061 | 0.066 | 0.016 | 0.010 | 0.995 | 0.498 | 0.094 | 0.091 | 0.019 | 0.011 | 0.997 | 0.500 |
