α [o]Right ascension |
δ [o]Declination |
λ [o]Galactic longitude |
β [o]Galactic latitude |
TmagTESS magnitude |
Teff [K]Effective temperature |
log(g) [dex]Surface gravity |
abun [dex]Metal abundance |
PM(α) [mas]Proper motion in R.A. |
PM(δ) [mas]Proper motion in Dec. |
SectorsTESS sectors the target was observed in |
ProvenancesAvailable mission and HLSP provenances |
Syndicated dataAll provenances in a single fits file |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 72.473353 | -72.462619 | 284.481800 | -34.780997 | 8.9849 | 5642.4 | 3.84857 | -1.03 | 8.8498 | -18.8813 | 1, 2, 3, 5, 6, 7, 8, 9, 10, 11, 12, 13, 27, 28, 29, 30, 31, 32, 33, 34, 35, 36, 37, 38, 39, 61, 62, 63, 64, 65, 66, 67, 68, 69, 87, 88 | QLP, SPOC, TESS-SPOC, GSFC-ELEANOR-LITE, TASOC, TGLC, T16 | FITS |
SignalTIC signal ID |
In catalog?Is this signal in the EB catalog? |
t0 [days]Time of superior conjunction |
σt0 [days]Uncertainty of t0 |

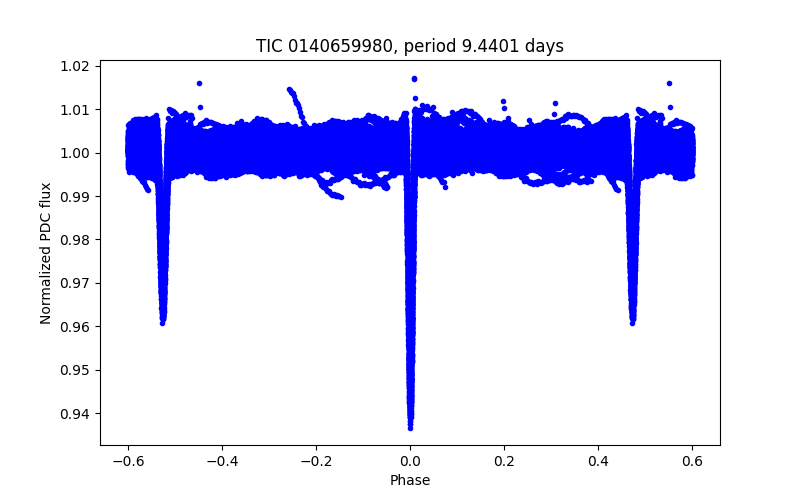

P [days]Orbital period in days |
σP [days]Orbital period in days |
MorphologyEB morphology coefficient |
Last modifiedLast modification date |
|---|---|---|---|---|---|---|---|
| 1 | True | 1602.03731647548 | 0.0001141558921062 | 9.440072114928599 | 0.000002399318141499407 | 0.085 | Feb. 26, 2025, 6:05 a.m. |
wp,pfPolyfit width of the primary eclipse |
ws,pfPolyfit width of the secondary eclipse |
dp,pfPolyfit depth of the primary eclipse |
ds,pfPolyfit depth of the secondary eclipse |
φp,pfPolyfit phase of the primary eclipse |
φs,pfPolyfit phase of the secondary eclipse |
wp,2g2-gaussian width of the primary eclipse |
ws,2g2-gaussian width of the secondary eclipse |
dp,2g2-gaussian depth of the primary eclipse |
ds,2g2-gaussian depth of the secondary eclipse |
φp,2g2-gaussian phase of the primary eclipse |
φs,2g2-gaussian phase of the secondary eclipse |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.015 | 0.020 | 0.045 | 0.027 | 1.000 | 0.473 | 0.021 | 0.028 | 0.049 | 0.029 | 1.000 | 0.473 |
