α [o]Right ascension |
δ [o]Declination |
λ [o]Galactic longitude |
β [o]Galactic latitude |
TmagTESS magnitude |
Teff [K]Effective temperature |
log(g) [dex]Surface gravity |
abun [dex]Metal abundance |
PM(α) [mas]Proper motion in R.A. |
PM(δ) [mas]Proper motion in Dec. |
SectorsTESS sectors the target was observed in |

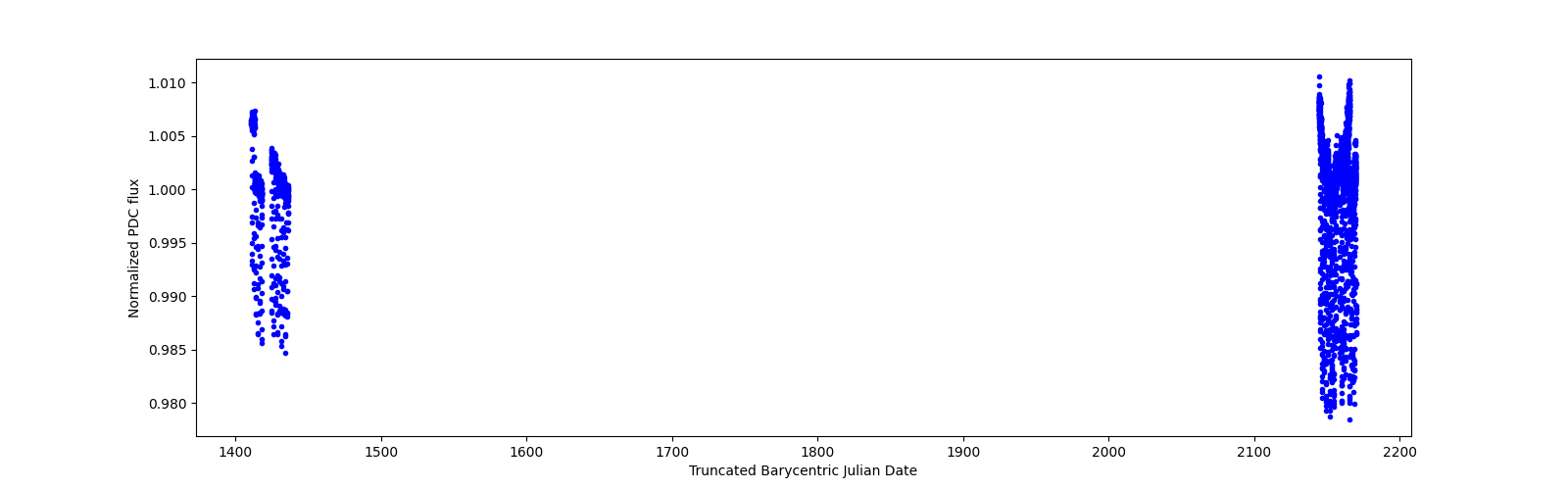

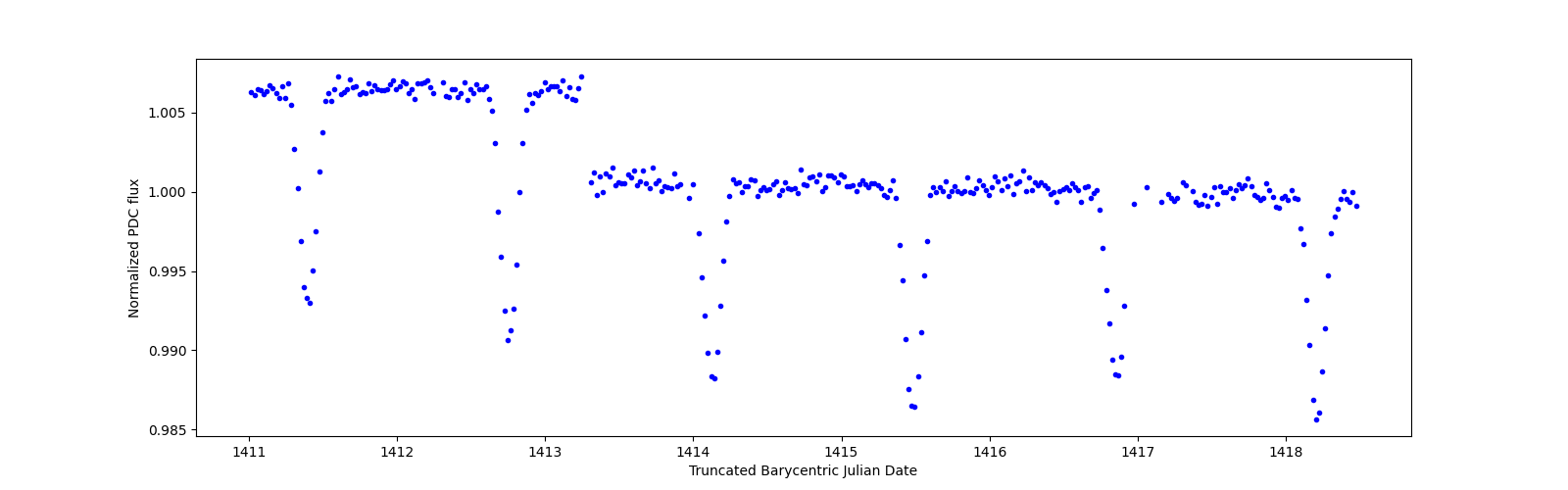

DataLight curve data |
ProvenancesAvailable mission and HLSP provenances |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 46.021370 | -17.761722 | 202.913968 | -58.062214 | 10.5824 | 5806.0 | 4.60715 | -0.69 | 37.2381 | -71.0197 | 4, 31 | LC |
SignalTIC signal ID |
In catalog?Is this signal in the EB catalog? |
t0 [days]Time of superior conjunction |
σt0 [days]Uncertainty of t0 |

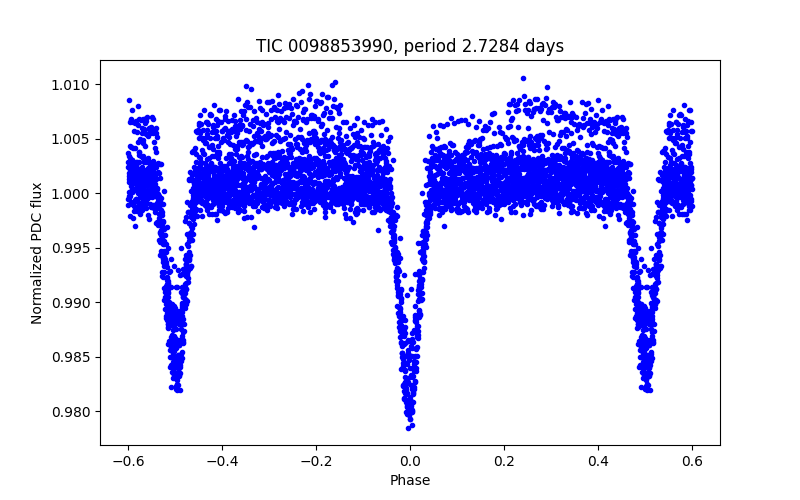

P [days]Orbital period in days |
σP [days]Orbital period in days |
MorphologyEB morphology coefficient |
Last modifiedLast modification date |
|---|---|---|---|---|---|---|---|
| 1 | True | 1412.7590995230926 | 0.0085362178497234 | 2.728371489446184 | 0.000024176395212016644 | 0.500 | Sept. 16, 2021, 5:39 p.m. |
wp,pfPolyfit width of the primary eclipse |
ws,pfPolyfit width of the secondary eclipse |
dp,pfPolyfit depth of the primary eclipse |
ds,pfPolyfit depth of the secondary eclipse |
φp,pfPolyfit phase of the primary eclipse |
φs,pfPolyfit phase of the secondary eclipse |
wp,2g2-gaussian width of the primary eclipse |
ws,2g2-gaussian width of the secondary eclipse |
dp,2g2-gaussian depth of the primary eclipse |
ds,2g2-gaussian depth of the secondary eclipse |
φp,2g2-gaussian phase of the primary eclipse |
φs,2g2-gaussian phase of the secondary eclipse |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.074 | 0.077 | 0.013 | 0.009 | 1.003 | 0.505 | 0.112 | 0.113 | 0.018 | 0.015 | 0.999 | 0.500 |
