α [o]Right ascension |
δ [o]Declination |
λ [o]Galactic longitude |
β [o]Galactic latitude |
TmagTESS magnitude |
Teff [K]Effective temperature |
log(g) [dex]Surface gravity |
abun [dex]Metal abundance |
PM(α) [mas]Proper motion in R.A. |
PM(δ) [mas]Proper motion in Dec. |
SectorsTESS sectors the target was observed in |

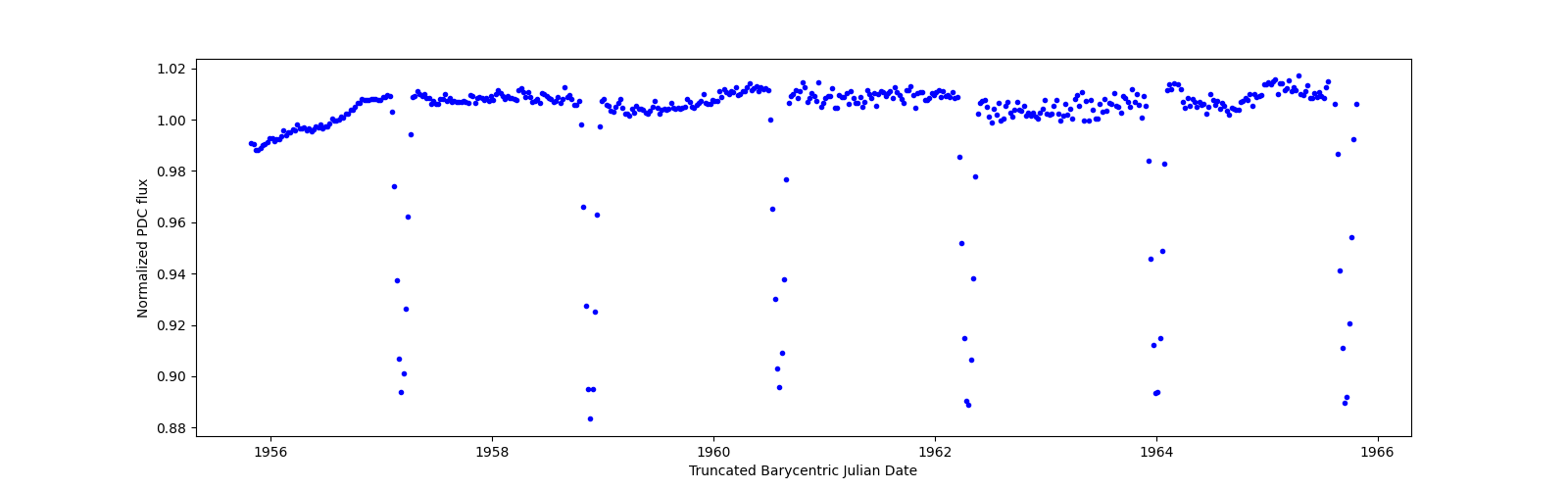

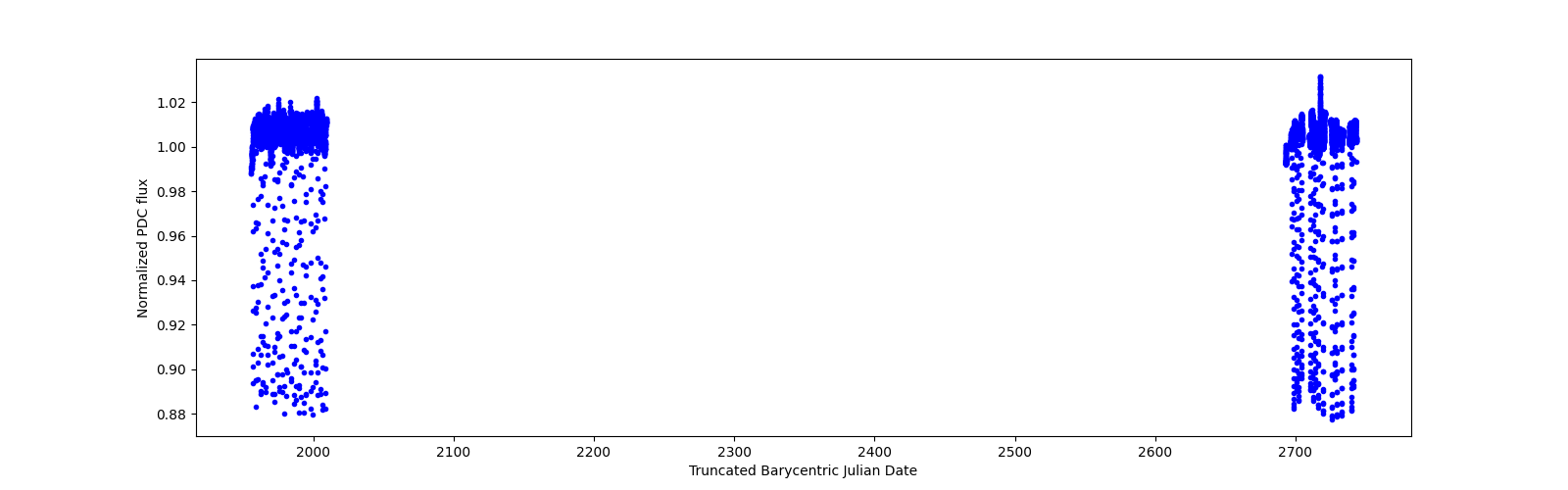

DataLight curve data |
ProvenancesAvailable mission and HLSP provenances |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 251.167095 | 38.623212 | 61.924335 | 40.535198 | 8.0436 | 6023.0 | 3.86297 | None | -12.5416 | 31.1995 | 24, 25, 51, 52 | LC |
SignalTIC signal ID |
In catalog?Is this signal in the EB catalog? |
t0 [days]Time of superior conjunction |
σt0 [days]Uncertainty of t0 |

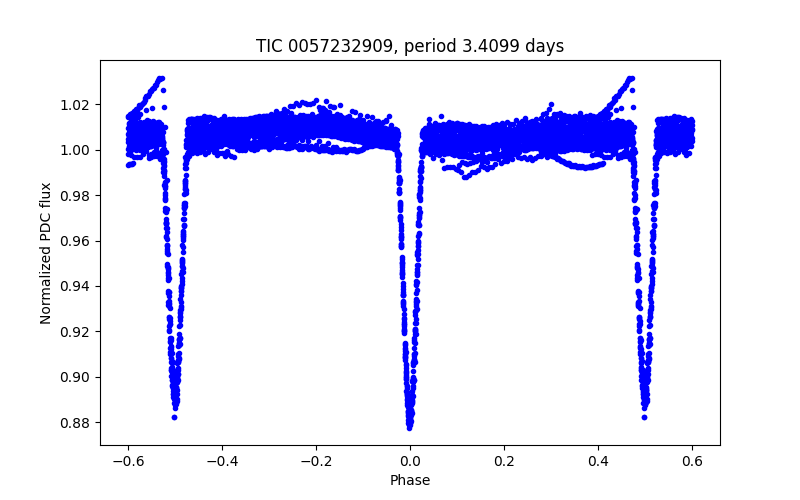

P [days]Orbital period in days |
σP [days]Orbital period in days |
MorphologyEB morphology coefficient |
Last modifiedLast modification date |
|---|---|---|---|---|---|---|---|
| 1 | True | 1958.8879389494657 | 0.00009290369644077144 | 3.4098943977095573 | 0.0000612278910585573 | 0.425 | Sept. 16, 2021, 5:40 p.m. |
wp,pfPolyfit width of the primary eclipse |
ws,pfPolyfit width of the secondary eclipse |
dp,pfPolyfit depth of the primary eclipse |
ds,pfPolyfit depth of the secondary eclipse |
φp,pfPolyfit phase of the primary eclipse |
φs,pfPolyfit phase of the secondary eclipse |
wp,2g2-gaussian width of the primary eclipse |
ws,2g2-gaussian width of the secondary eclipse |
dp,2g2-gaussian depth of the primary eclipse |
ds,2g2-gaussian depth of the secondary eclipse |
φp,2g2-gaussian phase of the primary eclipse |
φs,2g2-gaussian phase of the secondary eclipse |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.046 | 0.047 | 0.117 | 0.109 | 1.000 | 0.500 | 0.069 | 0.068 | 0.130 | 0.123 | 1.000 | 0.500 |
