α [o]Right ascension |
δ [o]Declination |
λ [o]Galactic longitude |
β [o]Galactic latitude |
TmagTESS magnitude |
Teff [K]Effective temperature |
log(g) [dex]Surface gravity |
abun [dex]Metal abundance |
PM(α) [mas]Proper motion in R.A. |
PM(δ) [mas]Proper motion in Dec. |
SectorsTESS sectors the target was observed in |

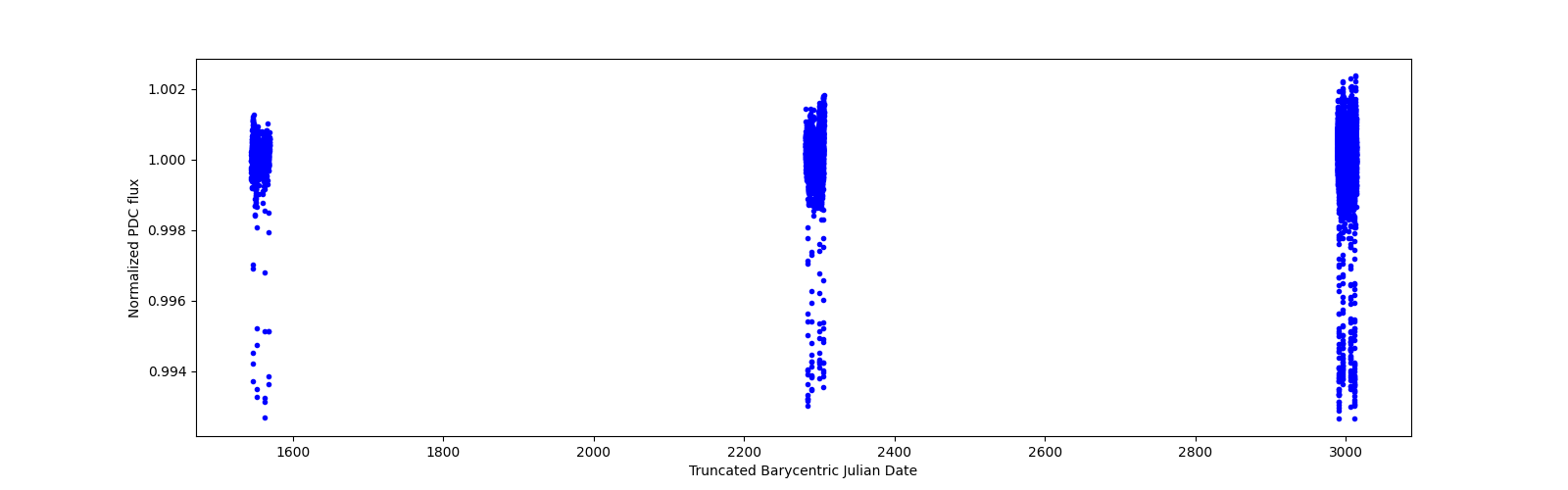

DataLight curve data |
ProvenancesAvailable mission and HLSP provenances |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 163.330745 | -10.753521 | 261.872366 | 42.509139 | 8.64373 | 6405.0 | 3.58518 | None | -12.5712 | 1.91156 | 9, 36 | LC |
SignalTIC signal ID |
In catalog?Is this signal in the EB catalog? |
t0 [days]Time of superior conjunction |
σt0 [days]Uncertainty of t0 |
P [days]Orbital period in days |
σP [days]Orbital period in days |
MorphologyEB morphology coefficient |
Last modifiedLast modification date |
|---|---|---|---|---|---|---|---|
| 1 | True | 1546.787652039728 | 0.0006174483389713 | 5.1962117059155855 | 0.0003241684117645 | 0.210 | Sept. 16, 2021, 5:38 p.m. |
wp,pfPolyfit width of the primary eclipse |
ws,pfPolyfit width of the secondary eclipse |
dp,pfPolyfit depth of the primary eclipse |
ds,pfPolyfit depth of the secondary eclipse |
φp,pfPolyfit phase of the primary eclipse |
φs,pfPolyfit phase of the secondary eclipse |
wp,2g2-gaussian width of the primary eclipse |
ws,2g2-gaussian width of the secondary eclipse |
dp,2g2-gaussian depth of the primary eclipse |
ds,2g2-gaussian depth of the secondary eclipse |
φp,2g2-gaussian phase of the primary eclipse |
φs,2g2-gaussian phase of the secondary eclipse |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.021 | 0.007 | 1.000 | 0.035 | 0.011 | 1.000 |
